SMG group was founded in 1977 by S.A.Muthusamy, MIE (University of Portsmouth-UK), S M G INDUSTRIES, based in Singanallur, Coimbatore, Tamil Nadu, are engaged in manufacturing and trading a wide variety of high-quality crusher plant machines and its accessories . These products offered by us are sourced from authorised dealers. While durability and efficient production output are the main attributes of our products, all our products are tested for accuracy and synchronous movement to ensure trouble free functioning. To meet various requirements of customers, we provide these products in varied specifications. We are committed to magnify customer’s satisfaction and that belief has helped us garner a vast clientele, which continues to grow by everyday.

Our Group of Companies:
  • Geco crusher
  • KPM Equipments(P) Ltd
  • Shendhur Alloys Foundry

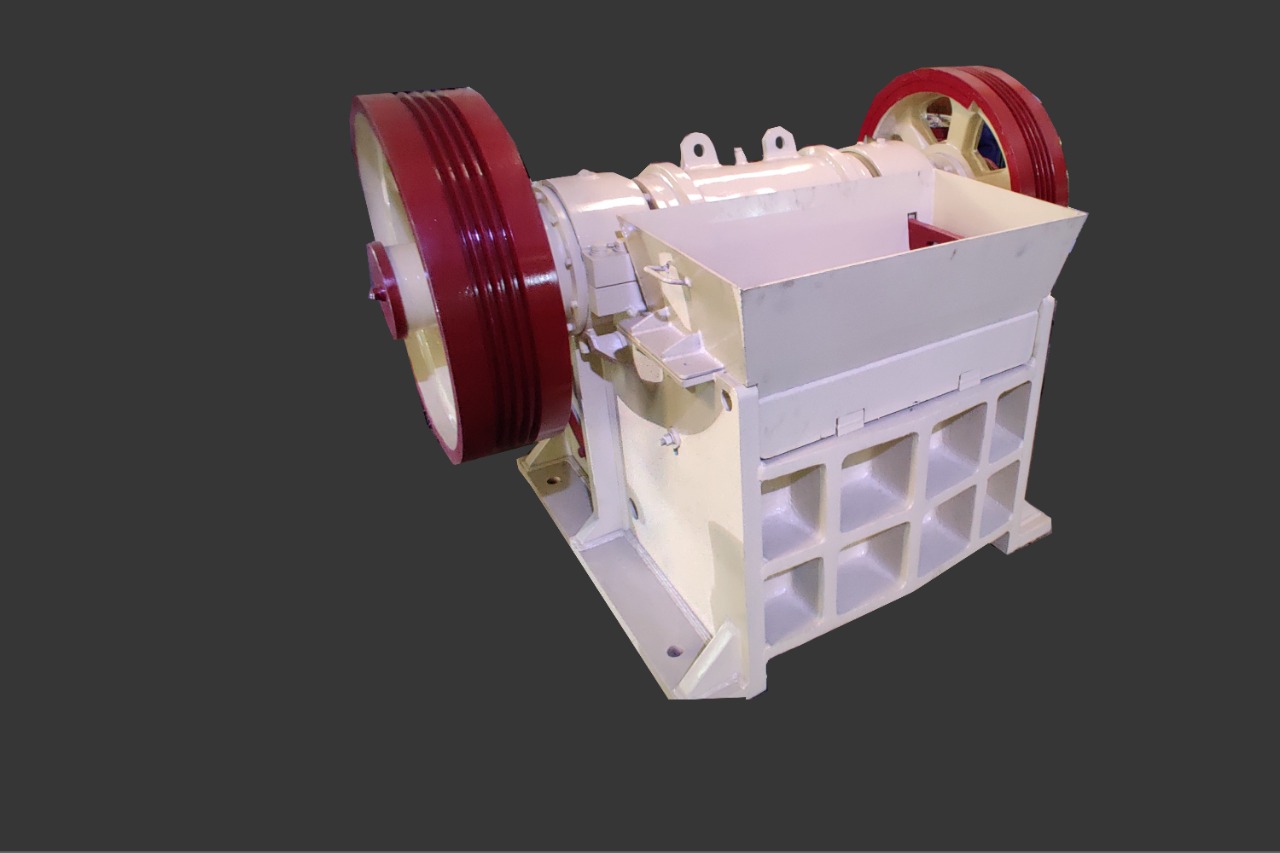

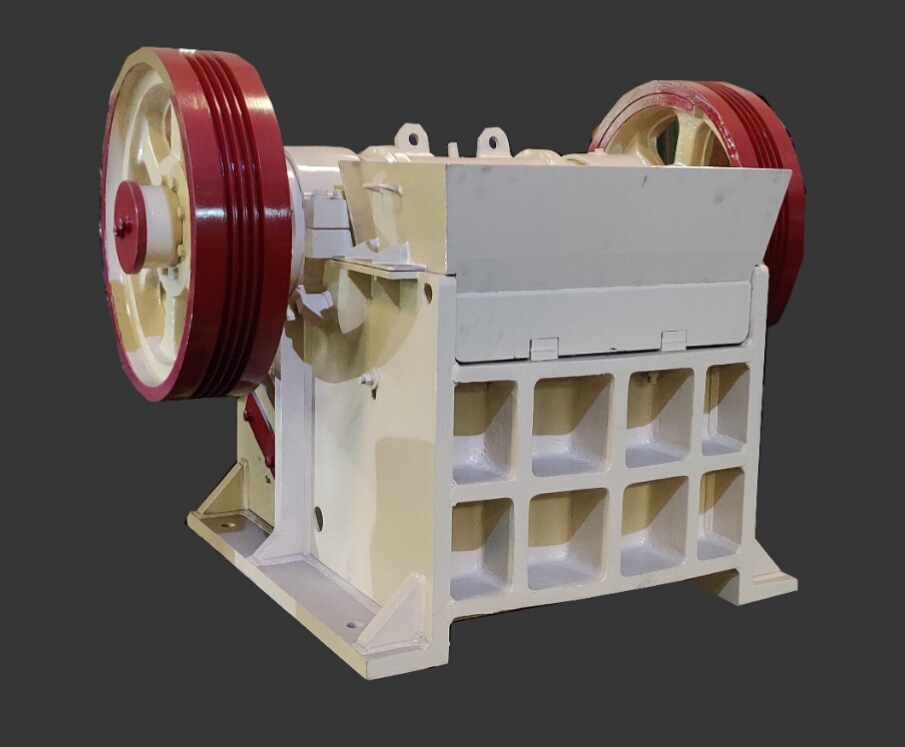

    • SINGLE TOGGLE JAW CRUSHER

    Size(inches) Model Crushing Capacity(tph) Feeding Size(inches) Power(hp) RPM
    3/4''(20mm) 1 1/2''(40mm) 4''(100mm) 6''(150mm) 8''(200mm)
    36 x 30 Prime Jet-II -- -- -- -- 200 27 100/120 300
    36 x 24 Prime Jet-I -- -- -- 150 -- 21 100 300
    30 x 22 Super Jet -- -- 80 100 -- 18 75 300
    36 x 08 Star Gold 32/36 50/60 -- -- -- 3-6 60 360
    30 x 10 Star Max 27/32 45/55 -- -- -- 4-8 50 360
    30 x 08 Star 27/32 40/50 -- -- -- 3-6 50 360
    24 x 16 Geco Jet 20/24 45/55 60 -- -- 8-14 50 360

    DOUBLE TOGGLE JAW CRUSHER

    Size(inches) MODEL Crushing Capacity (tph) Feeding size(inches) Power(hp) RPM
    36x30 Prime - I 100 - 200 TPH 27 100/120 300
    30x24 Prime - II 75 - 100 TPH 21 75 325
    24X14 Super 50 - 60 TPH 12 50 325
    30x08 Star Gold 20 - 25 TPH 6 50 325
    30x10 Star max 25 - 30 TPH 8 50 325

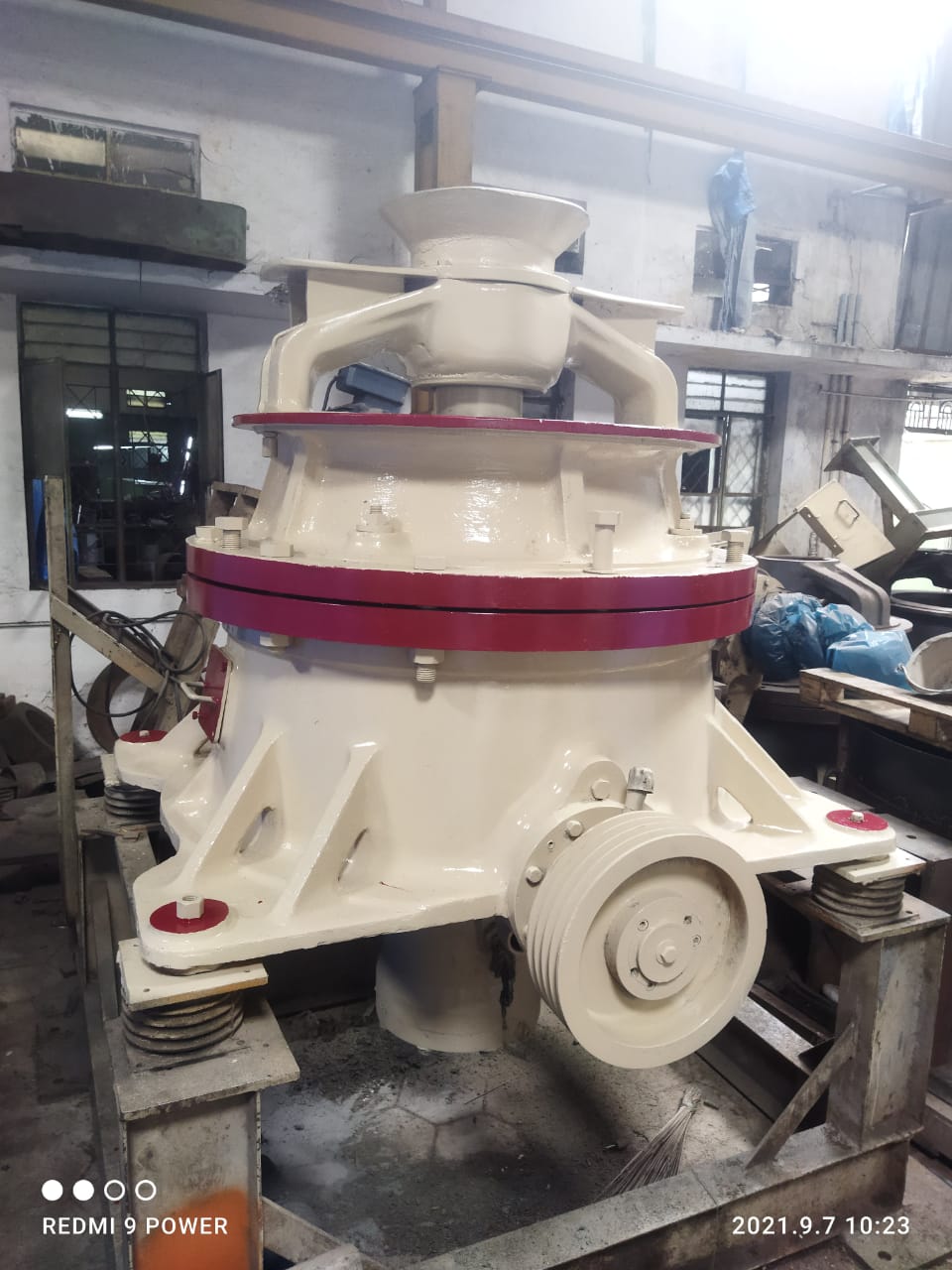

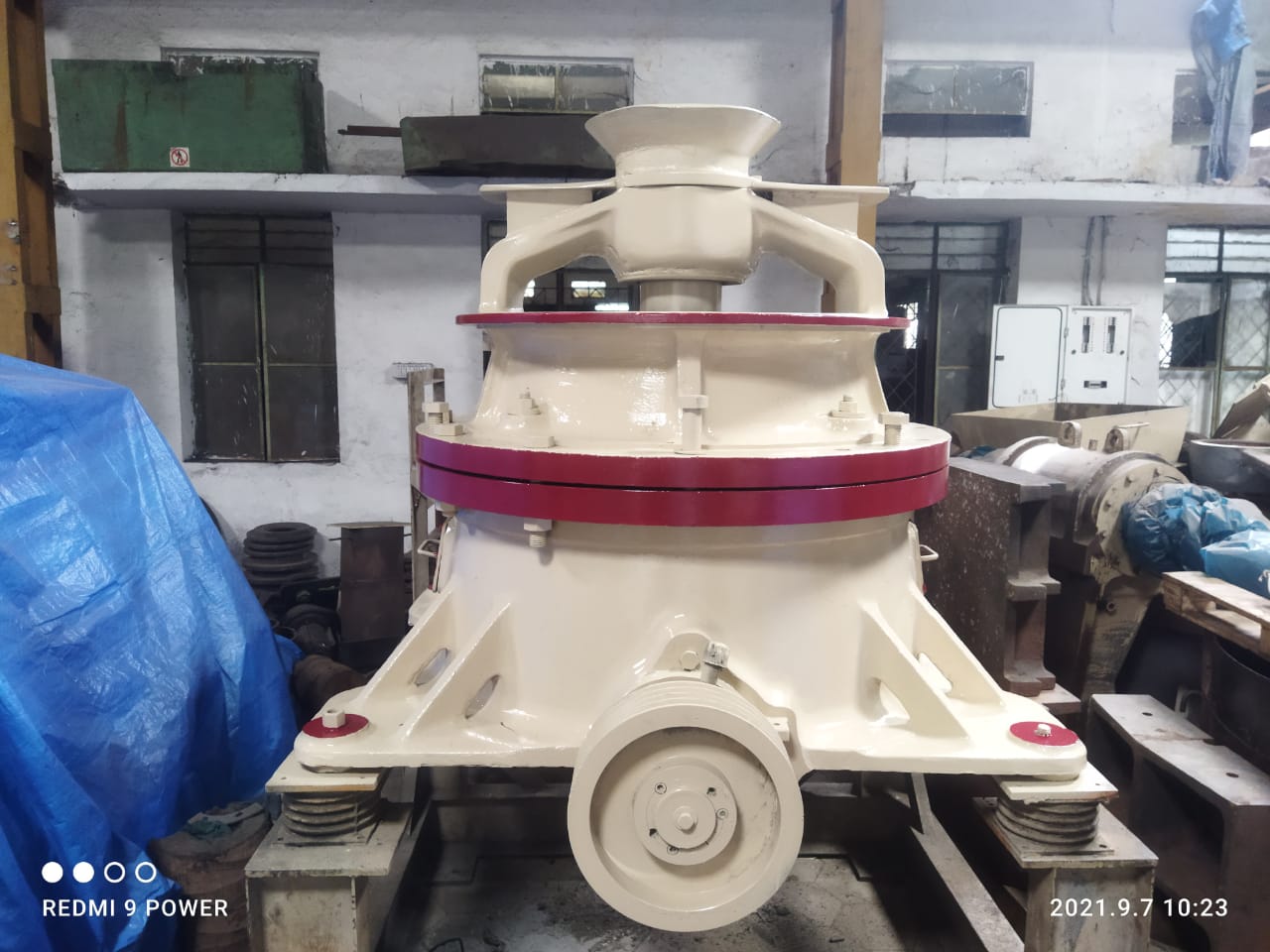

    CONE CRUSHER

    MODEL 100 TPH CONE G 100 FINE CONE 200 CONE
    MAX INPUT SIZE(mm)
    inch    		 100 mm
    4''    		 600mm
    2.4''    		 175mm
    6.9''
    CSS RANGE(mm) 16 to 24 10 to 14 18 to 30
    MOTOR/POWER(kw)HP 120 150 220
    CAPACITY (TPH) 50 to 100 35 to 60 100 to 250
    WEIGHT(kg) 6000 7000 12500

    VERTICAL SHAFT IMPACTOR

    Model Feeding size(Max. mm) Rotor RPM Motor Capacity HP Capacity M.Sand(tph) 3.5 - 4.5mm mesh Capacity aggrerates(tph)
    VSI 30 -20 1500 30 7/9 20
    VSI 50 -20 1500 50 10/15 30
    VSI 100 20 1500 100 20/30 80
    VSI 150 20 1500 150 30/45 120
    VSI 250 25 1500 250 50/75 200

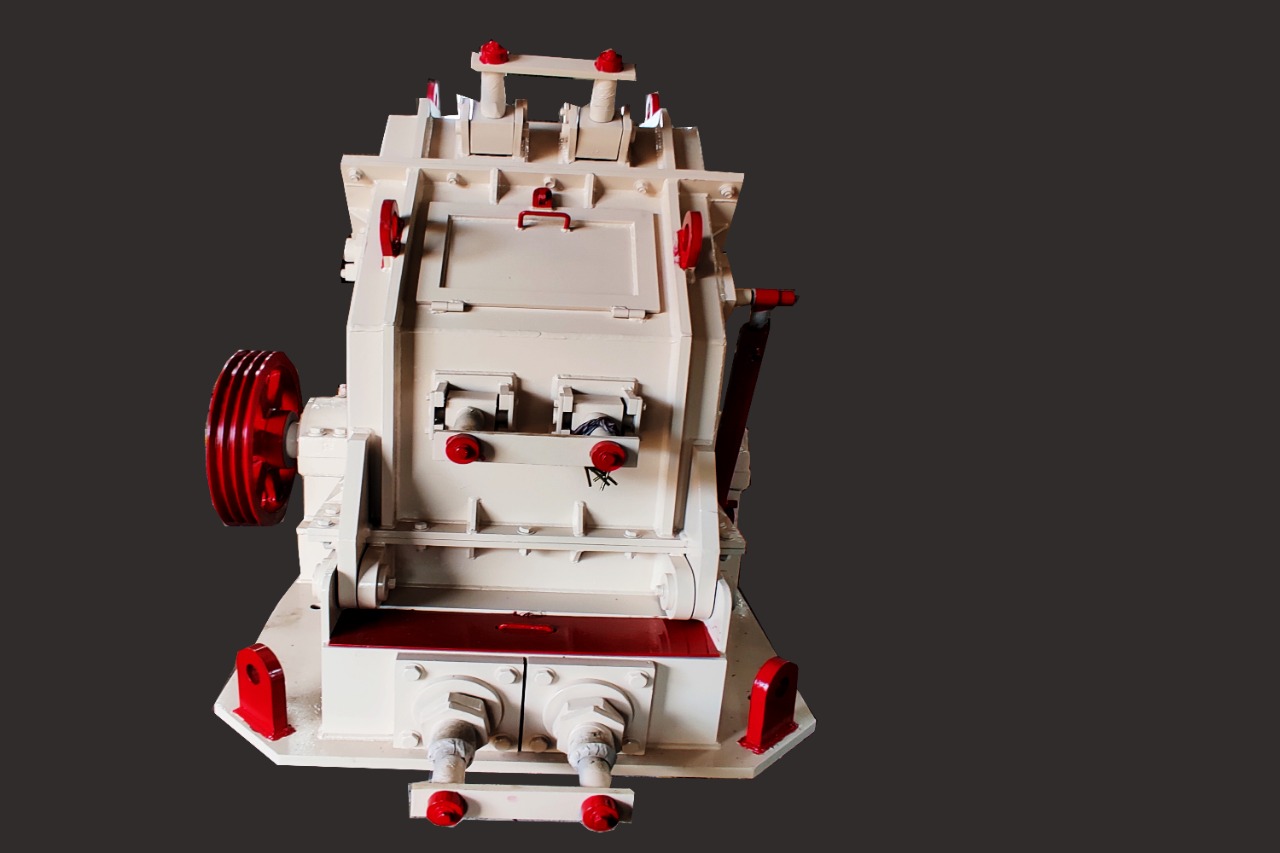

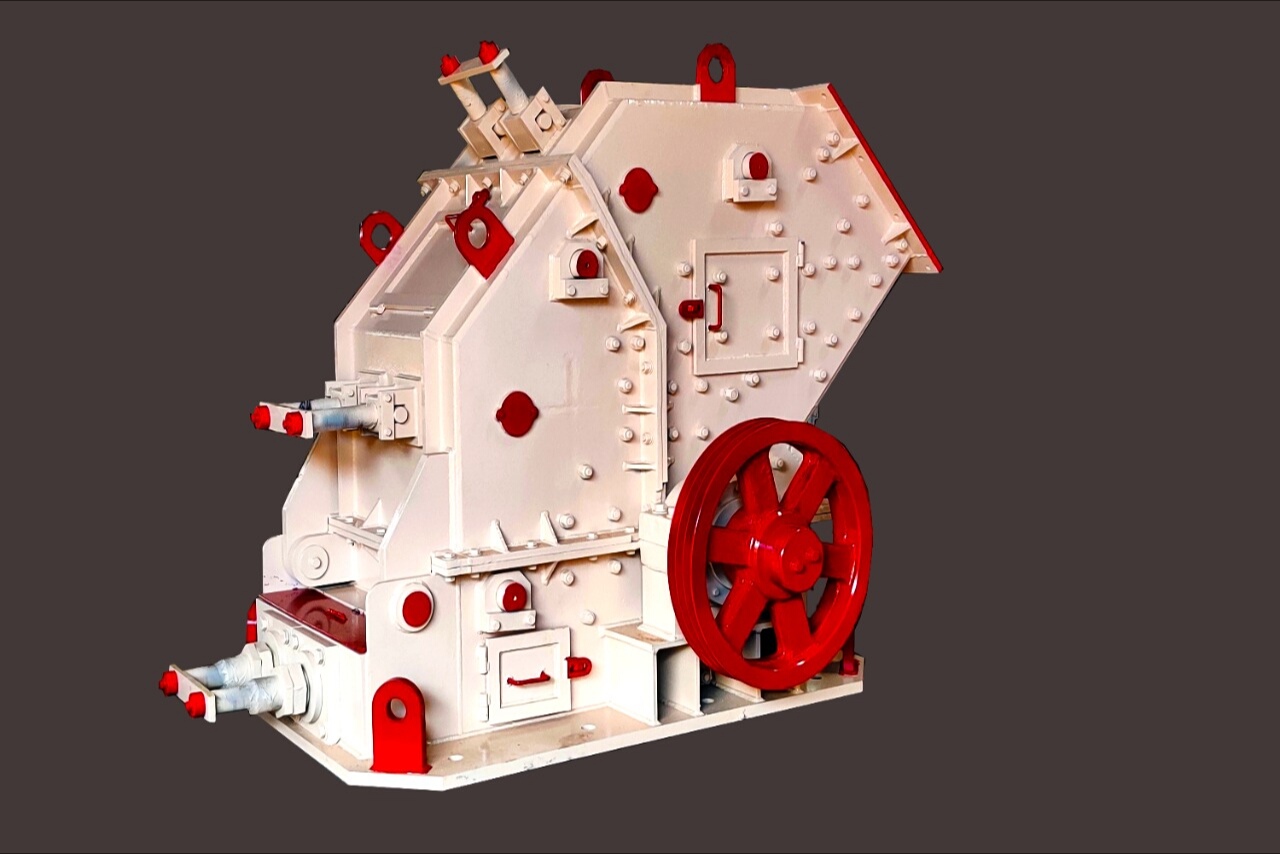

    HORIZONTAL SHAFT IMPACTOR

    Model Feeding Size(Max. mm) Rotor RPM Motor Capacity HP Capacity M.Sand(tph) Capacity Aggrerates
    HSI 30 (+12 -30) 960 40 8 20
    HSI 60 (+12 -45) 960 60 16 40

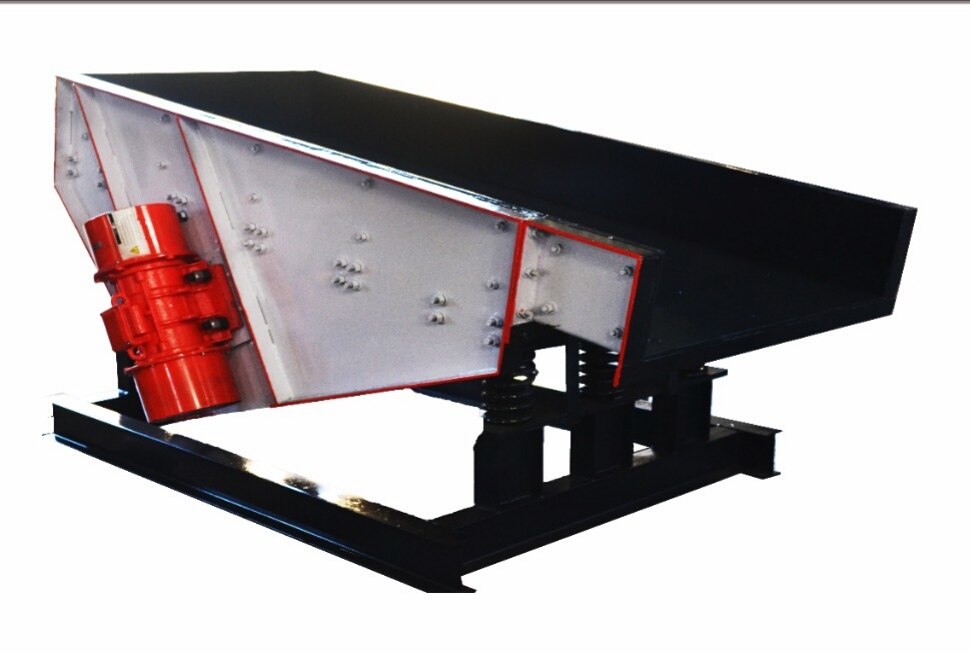

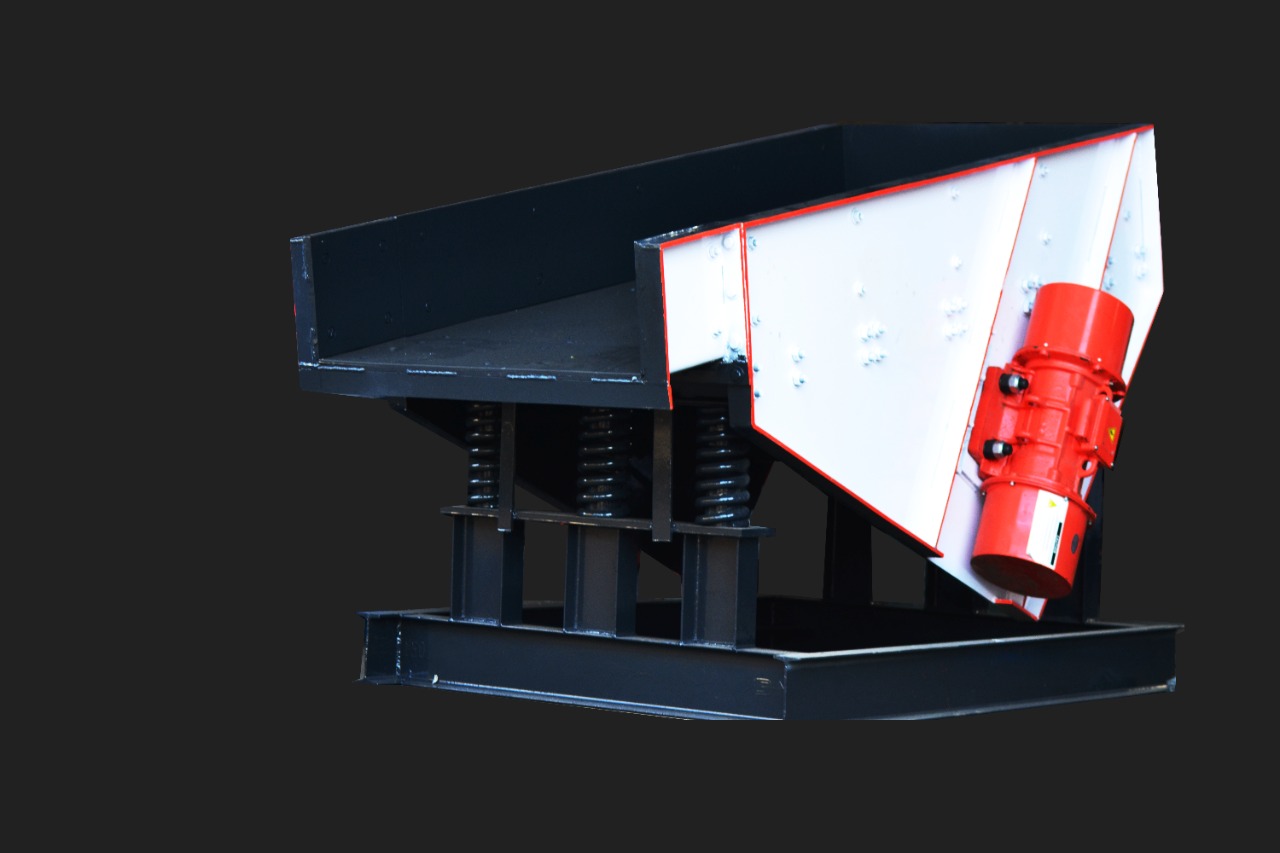

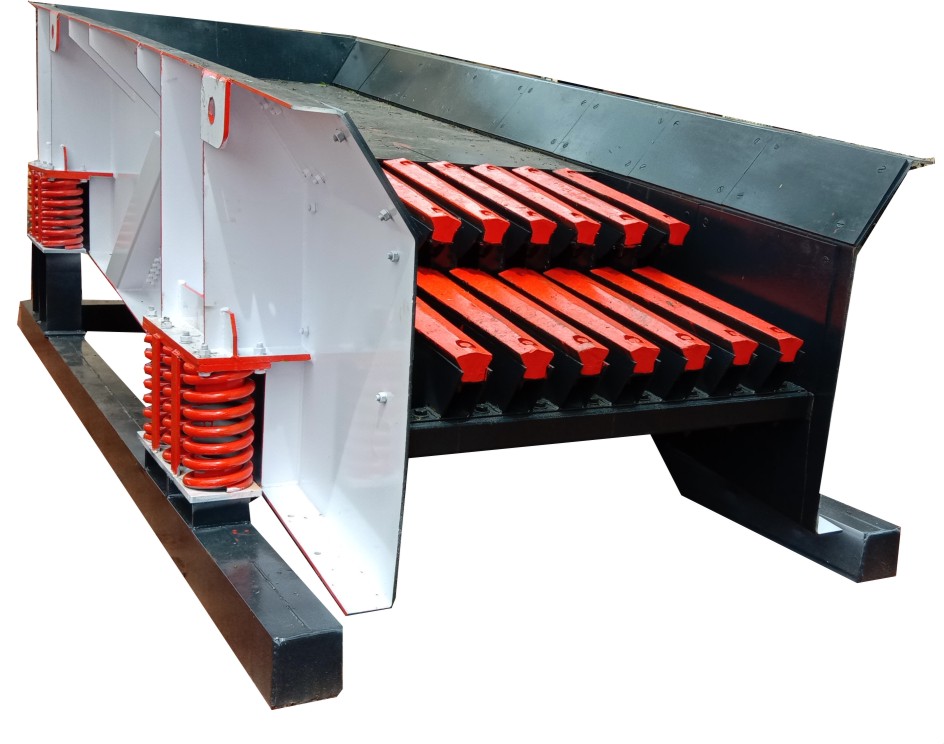

    VIBRO FEEDER

    Specification(tph) Secondary I Secondary II Primary (s1 grizzly) Primary (s2 grizzly)
    Model SMG-S1 SMG-S2 SMG-PS1 SMG-PS2
    Capacity(TPH) 30-50 30-75 100-150 150-200
    Inclination (Degrees) 5 5 5 5
    Size L*W(mm) 1800 x 900 2100 x 900 3000 x 1200 3600 x 1600
    RPM 1000 1000 1000 1000
    Power Kw 1.5 x 2 1.5 x 2 3.8 x 2 3.8 x 2

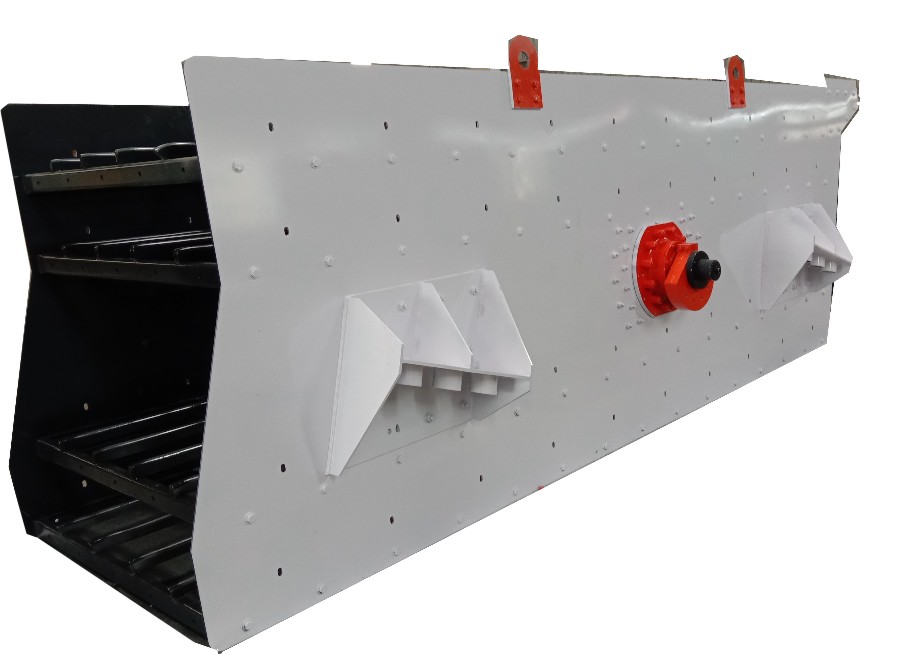

    VIBRATOR

    Model Screen Size L*W Feet No.of Decks Screen Size W x L (in mm) Screening Capacity(tph) For Use Screening Area SQMtr Springs NOS RPM Motor Power (kW/HP)
    1043 10 x 04 3 3000 x 1200 15/30 SAND/AG 3.6 8 800-900 7.5/10
    1044 10 x 04 4 3000 x 1200 15/30 SAND/AG 3.6 8 800-900 7.5/10
    1243 12 x 04 4 3600 x 1200 30/60 SAN/AUT 4.3 12 800-900 11/15
    1244 12 x 04 4 3600 x 1200 30/60 SAND/AG 4.3 12 800-900 11/15
    1443 14 x 04 4 4200 x 1200 40/80 SAND/AUT 5.0 12 800-900 15/20
    1444 14 x 04 4 4200 x 1200 40/80 SAND/AG 5.0 12 800-900 18.5/25
    1643 16 x 05 4 4900 x 1200 100-150 SAND 5.9 12 800-900 18.5/25
    1644 16 x 05 4 4900 x 1200 100-150 SAND/AG 5.9 12 800-900 22/30
    1863 18 x 06 4 5000 x 1800 150-200 SAND 6.6 12 800-900 30/40
    1864 18 x 06 4 5000 x 1800 150-200 SAND/AG 6.6 12 800-900 30/40

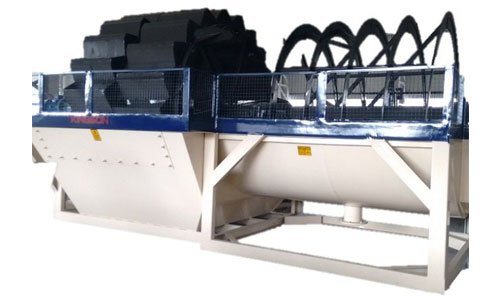

    BUCKET SAND WASHER

    Bucket Sand Washing Machine are made up of high quality structural design to give good quality of Sand Washing

    PU Buckets are fitted to give long lasting life, very low power consuption and low water consuption.

    Specification BW 60 BW 80 BW 100 BW 120
    Capacity(TPH) 40 to 60 60 to 80 80 to 100 100 to 120
    Dewatering Size(LW) (m) 1.2 x 0.9 1.8 x 1.2 2.3 x 1.5 2.5 x 2
    Dewatering FeederPower(kW) 1.15 1.53 1.53 2.30
    Washer Power(kW) 3.73 3.73 5.76 7.69
    Machine Size (L W H) (m) 5.2 x 2.8 x 3.5 6.2 x 3.2 x 3.5 6.8 x 3.8 x 4.5 8.2 x 4.2 x 5.2
    Feed Size(mm) 3.5mm 3.5mm 3.5mm 3.5mm
    Output (M-Sand/P.Sand) (mm) 3.5/2.10 3.5/2.10 3.5/2.10 2.5/2.10

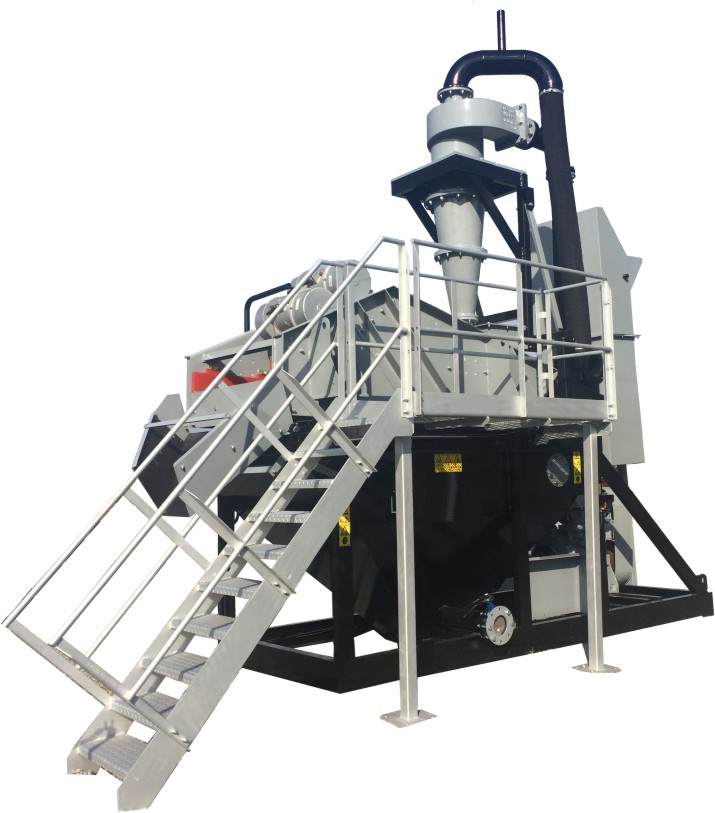

    WASHER HYDRO CYCLONE

    SPECIFICATION HW 75 HW 100 HW 150 HW 200
    Capacity (TPH) 60 to 80 90 to 110 120 to 160 160 to 200
    Dewatering Size(LW) (m) 2.1 x 1.5 2.5 x 1.5 2.8 x 1.8 4 x 2.3
    Dewatering Power(kW) 2 x 2.2 2 x 2.2 2 x 3.2 2 x 7.5
    Slurry Pump Power(kW) 15 20 20 30
    Slurry Pump Size Suction(inch) 3 4 4 6
    Delivery(inch) 2 3 3 4
    Slurry Pump Flow Rate(m3/HR) 100 125 150 200
    Impeller Material HI CHROME HI CHROME HI CHROME HI CHROME
    Machine Size(LWH) (M) 4.1 x 5 x 5.1 5 x 5.1 x 5.5 6 x 5.5 x 5.5 8 x 6 x 5.8
    Feeding Size(mm) 3.5 3.5 3.5 3.5
    Output (M-Sand/P.Sand) (mm) 3.2/2.10 3.2/2.10 3.2/2.10 3.2/2.10

    VIBRATOR SCREENING WIRE MESH

    APERTURE(MM) WIRE DIA(MM)
    2.5 2
    3 2.5
    3.5 2.5
    4 2.5
    4 3
    5 3
    5.5 4
    6 4
    7 4
    8 4
    10 4
    10 5
    12 5
    12 6
    14 6
    16 6
    APERTURE(MM) WIRE DIA(MM)
    18 6
    20 8
    22 8
    24 8
    25 8
    26 8
    28 8
    30 8
    28 10
    36 10
    40 10
    45 10
    50 10
    55 10
    58 10
    APERTURE(MM) WIRE DIA(MM)
    65 10
    63 10
    60 10
    55 10
    50 10
    45 10
    65 8
    63 8
    60 8
    45 8
    40 8
    38 8
    35 8
    32 8
    30 8
    29 8
    APERTURE(MM) WIRE DIA(MM)
    28 8
    26 8
    25 8
    24 8
    20 8
    18 6
    15 6
    14 6
    12 6
    10 5

    VIBRATOR SCREENING PUNCHING PLATE

    We specialize in custom manufacturing punching sheets in various dimensions.

    Our Range :
    Sheet Thickness - 4.00 mm to 12.00 mm
    Hole Diameter - 4.00 mm hole dia to 60.00 mm hole dia Material - MS
    Manufactured using Latest Technology for superior Quality and Durability.

    SMSR GEAR BOX

    MODEL CAPACITY
    C 2 HP
    D 3 HP
    E 5 HP
    F 7.5 HP
    G 10 - 12 HP
    H 15 - 20 HP

    POLYURETHANE SCREEN PANELS

    We specialize in custom manufacturing Polyurethane Screen Panels in various dimensions. PU lock & PU Wedge.

    Applications :Bucket Sand Washer / Hydro Cyclone Sand Washer / Vibrators / Dewatering Unit.
    Length - 300 mm to 1500 mm / Width - 300 mm to 500 mm
    Thickness - 12 mm for Bucket Screen & 30 mm for dewatering Screen
    Aperture - 0.5 mm, 0.7 mm, 1.00 mm, 1.5 mm, 2.00 mm, 2.5 mm & 3.00 mm.

    CRUSHER SERVICE UNIT

    We have a seperate division for servicing of Jaw crushers, VSI, HSI & Cone crushers of various makes and models. The unit is equipped with 25 TON EOT crane to handle primary crushers and bigger capacity cone crushers. The unit is equipped with 25 welding machines and wide range of heavy duty horizontal boring machines, Vertical Turret lathes, Heavy duty lathes, Vertical Machining centre, Horizontal Machining centre, Grinding machines, Rotor Dynamic Balancing Machine, Laser Cutting Machine etc., to ensure the crusher is serviced accurately in very short lead time. We work 24/7 to speed up the delivery.
